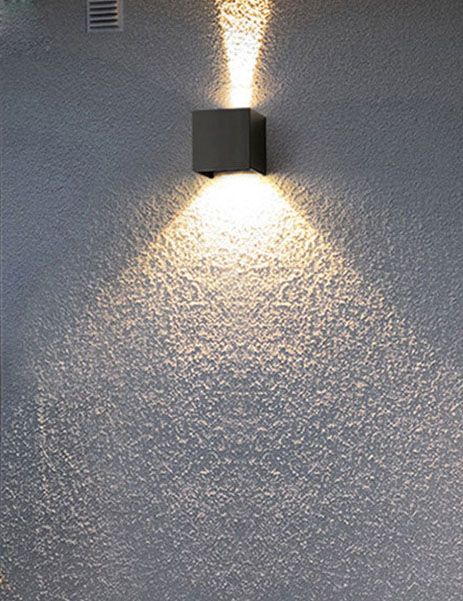

Fresnel lens is used for LED light source to increase light efficiency and brightness. Compared with the same lens and LED light, the focal length and distance are different, and the angle of outgoing light can be set arbitrarily. Single light or multiple array LEDs The lights can be designed according to the needs. The size of the lens can be designed according to customer needs, and the light output angle can be adjusted to reduce the cost of mold opening. Precise machine tool processing realizes the accurate transmission of light. Features: Fresnel lens has the advantages of ultra-thin structure, super large size, ultra-light weight, arbitrary shape cutting, excellent light transmittance, low price, light and easy to carry, etc. It has more advantages than traditional convex lenses, and its weight is less than Convex lens, suitable for many occasions. Widely used in: LED floodlights, colorful floodlights, lighting, landscape lights, signal lights, wall washers and other lamps.
Flexible size allows cutting of Fresnel lenses for COB architectural and stage lighting compatible with all LED types and sizes.

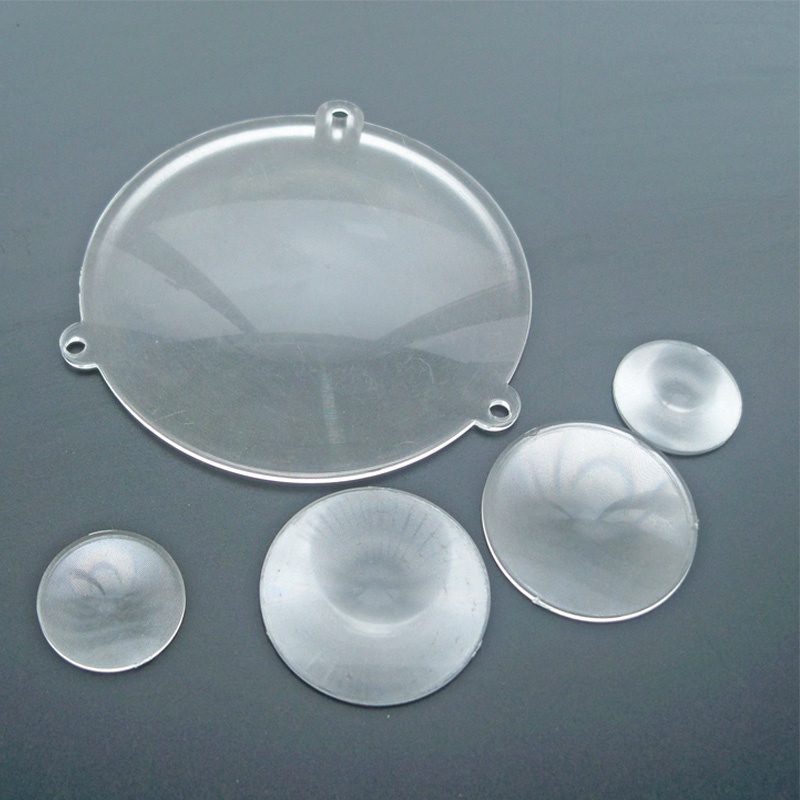

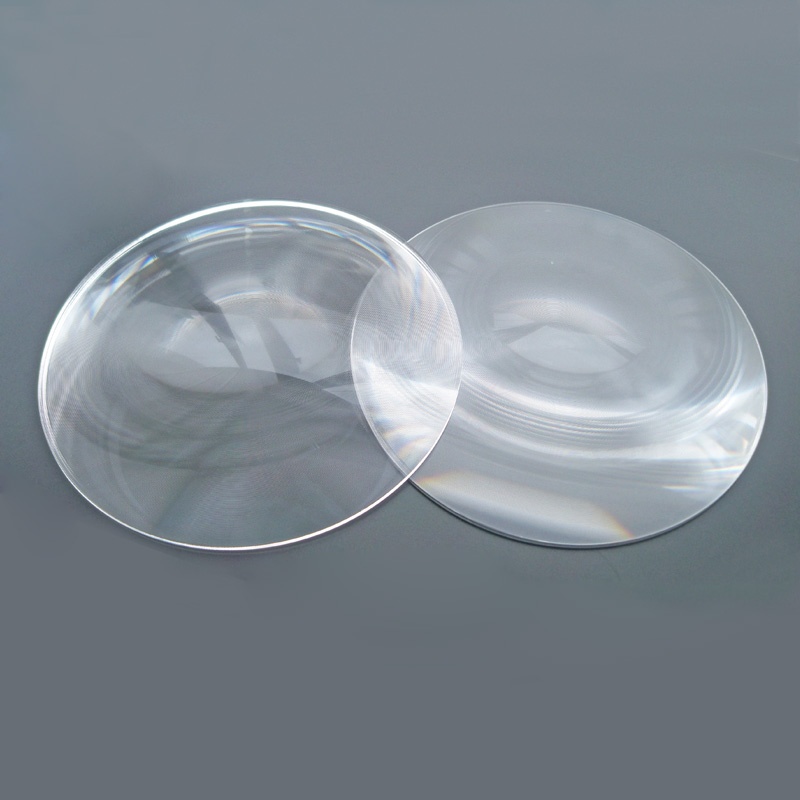

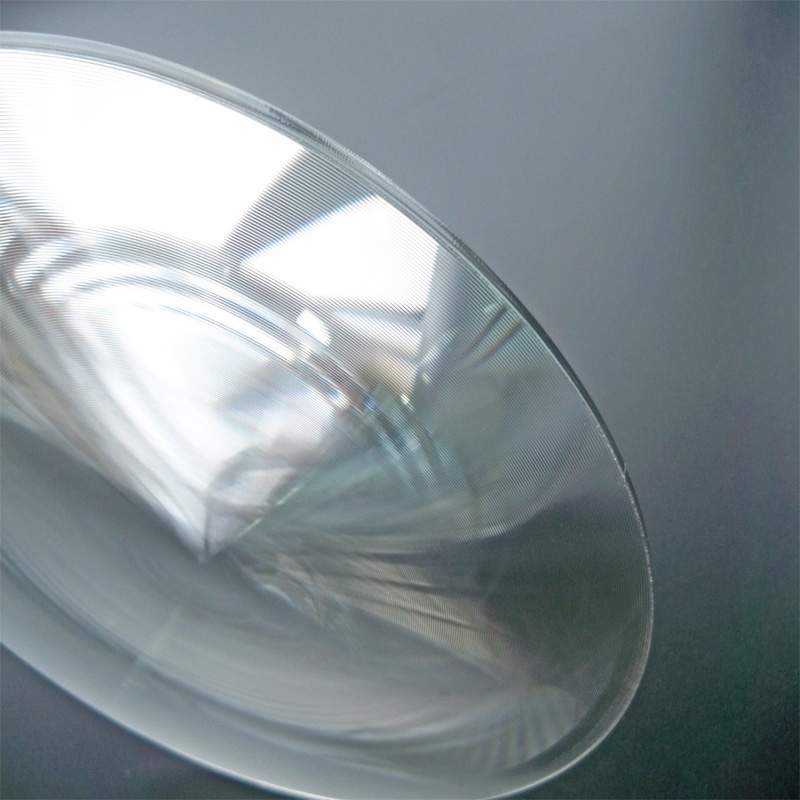

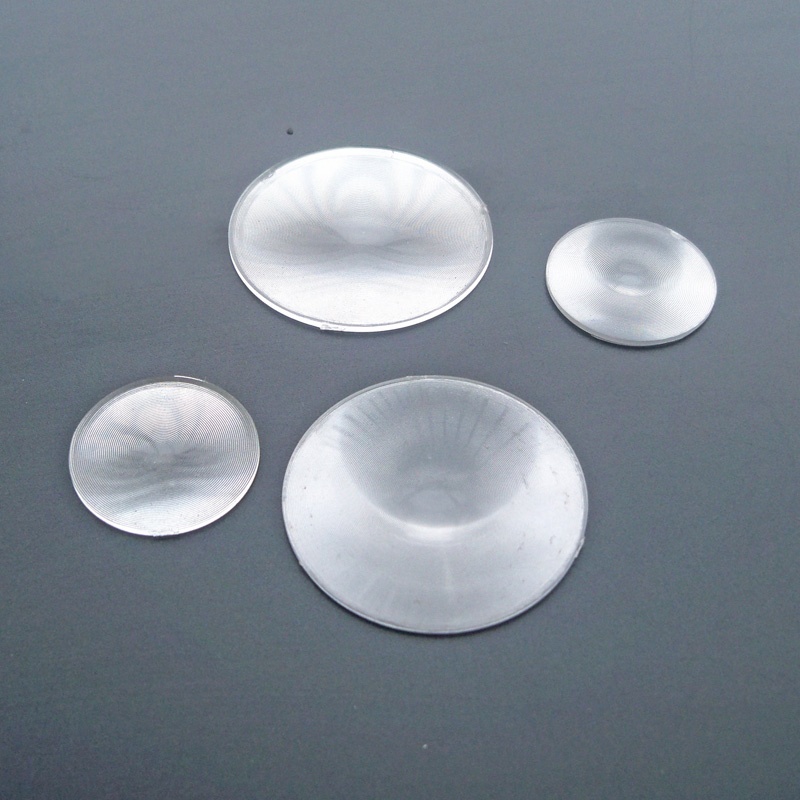

Datasheet Of Fresnel Lenses
（Focal length is constant,the size can be from large to small,so many specifications can be derived）
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F1506 | 15 | 6 | 0.4 | Round |
| 2 | HX-F2412 | 24 | 12 | 0.3 | Round |
| 3 | HX-F3020 | 30 | 20 | 0.1 | Round |
| 4 | HX-F4528 | 45 | 28 | 0.2 | Round |
| 5 | HX-F6038 | 60 | 38 | 0.2 | Round |
| 6 | HX-F6039 | 60 | 39 | 0.2 | Round |
| 7 | HX-F060400 | 60 | 400 | 0.2 | Round |
| 8 | HX-F063135 | 63 | 135 | 0.5 | Round |
| 9 | HX-F70278 | 70 | 27.8 | 0.5 | Round |
| 10 | HX-F7083 | 70 | 83 | 0.3 | Round |
| 11 | HX-F7226 | 72 | 26 | 0.3 | Round |
| 12 | HX-F8043 | 80 | 43 | 0.3 | Round |
| 13 | HX-F8570 | 85 | 70 | 0.3 | Round |
| 14 | HX-F9029 | 90 | 29 | 0.3 | Round |
| 15 | HX-F9062 | 90 | 62 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F100040 | 100 | 40 | 0.3 | Round |
| 2 | HX-F100050 | 100 | 50 | 0.3 | Round |
| 3 | HX-F100060 | 100 | 60 | 0.3 | Round |
| 4 | HX-F100080 | 100 | 80 | 0.3 | Round |
| 5 | HX-F100090 | 100 | 90 | 0.3 | Round |
| 6 | HX-F100095 | 100 | 95 | 0.5 | Round |
| 7 | HX-F100100 | 100 | 100 | 0.3 | Round |
| 8 | HX-F100120 | 100 | 120 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F120063 | 120 | 63 | 0.3 | Round |
| 2 | HX-F120090 | 120 | 90 | 0.5 | Round |
| 3 | HX-F120130 | 120 | 130 | 0.3 | Round |
| 4 | HX-F120135 | 120 | 135 | 0.3 | Round |
| 5 | HX-F120140 | 120 | 140 | 0.3 | Round |
| 6 | HX-F120148 | 120 | 148 | 0.3 | Round |
| 7 | HX-F120185 | 120 | 185 | 0.3 | Round |
| 8 | HX-F120210 | 120 | 210 | 0.3 | Round |
| 9 | HX-F120220 | 120 | 220 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F150090 | 150 | 90 | 0.5 | Round |
| 2 | HX-F150130 | 150 | 130 | 0.3 | Round |
| 3 | HX-F150140 | 150 | 140 | 0.3 | Round |
| 4 | HX-F150148 | 150 | 148 | 0.3 | Round |
| 5 | HX-F150185 | 150 | 185 | 0.3 | Round |
| 6 | HX-F150200 | 150 | 200 | 0.3 | Round |
| 7 | HX-F150210 | 150 | 210 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F160140 | 160 | 140 | 0.3 | Round |
| 2 | HX-F160148 | 160 | 148 | 0.3 | Round |
| 3 | HX-F160175 | 160 | 175 | 0.3 | Round |
| 4 | HX-F160185 | 160 | 185 | 0.3 | Round |
| 5 | HX-F160200 | 160 | 200 | 0.3 | Round |
| 6 | HX-F160210 | 160 | 210 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F180080 | 180 | 80 | 0.3 | Round |
| 2 | HX-F180148 | 180 | 148 | 0.3 | Round |
| 3 | HX-F180200 | 180 | 200 | 0.3 | Round |
| 4 | HX-F180260 | 180 | 260 | 0.3 | Round |
| 5 | HX-F180326 | 180 | 326 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F200080 | 200 | 80 | 0.5 | Round |
| 2 | HX-F200090 | 200 | 90 | 0.5 | Round |
| 3 | HX-F200100 | 200 | 100 | 0.5 | Round |
| 4 | HX-F200120 | 200 | 120 | 0.3 | Round |
| 5 | HX-F200135 | 200 | 135 | 0.5 | Round |
| 6 | HX-F200140 | 200 | 140 | 0.3 | Round |
| 7 | HX-F200148 | 200 | 148 | 0.3 | Round |
| 8 | HX-F200160 | 200 | 160 | 0.3 | Round |
| 9 | HX-F200185 | 200 | 185 | 0.5 | Round |
| 10 | HX-F200200 | 200 | 200 | 0.3 | Round |
| 11 | HX-F200210 | 200 | 210 | 0.5 | Round |
| 12 | HX-F200220 | 200 | 220 | 0.5 | Round |
| 13 | HX-F200230 | 200 | 230 | 0.5 | Round |
| 14 | HX-F200240 | 200 | 240 | 0.5 | Round |
| 15 | HX-F200250 | 200 | 250 | 0.3 | Round |
| 16 | HX-F200260 | 200 | 260 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F230090 | 230 | 90 | 0.5 | Round |
| 2 | HX-F230100 | 230 | 100 | 0.5 | Round |
| 3 | HX-F230135 | 230 | 135 | 0.5 | Round |
| 4 | HX-F230170 | 230 | 170 | 0.3 | Round |
| 5 | HX-F230185 | 230 | 185 | 0.5 | Round |
| 6 | HX-F230200 | 230 | 200 | 0.5 | Round |
| 7 | HX-F230210 | 230 | 210 | 0.5 | Round |
| 8 | HX-F230220 | 230 | 220 | 0.5 | Round |
| 9 | HX-F230230 | 230 | 230 | 0.5 | Round |
| 10 | HX-F230240 | 230 | 240 | 0.2 | Round |
| 11 | HX-F230250 | 230 | 250 | 0.3 | Round |
| 12 | HX-F230260 | 230 | 260 | 0.3 | Round |
| 13 | HX-F230315 | 230 | 315 | 0.5 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F250090 | 250 | 90 | 0.5 | Round |
| 2 | HX-F250100 | 250 | 100 | 0.5 | Round |
| 3 | HX-F250135 | 250 | 135 | 0.5 | Round |
| 4 | HX-F250140 | 250 | 140 | 0.3 | Round |
| 5 | HX-F250160 | 250 | 160 | 0.3 | Round |
| 6 | HX-F250170 | 250 | 170 | 0.3 | Round |
| 7 | HX-F250185 | 250 | 185 | 0.5 | Round |
| 8 | HX-F250200 | 250 | 200 | 0.5 | Round |
| 9 | HX-F250210 | 250 | 210 | 0.5 | Round |
| 10 | HX-F250220 | 250 | 220 | 0.5 | Round |
| 11 | HX-F250230 | 250 | 230 | 0.5 | Round |
| 12 | HX-F250240 | 250 | 240 | 0.5 | Round |
| 13 | HX-F250250 | 250 | 250 | 0.5 | Round |
| 14 | HX-F250290 | 250 | 290 | 0.5 | Round |
| 15 | HX-F250300 | 250 | 300 | 0.3 | Round |
| 16 | HX-F250315 | 250 | 315 | 0.3 | Round |
| 17 | HX-F250326 | 250 | 326 | 0.5 | Round |
| 18 | HX-F250356 | 250 | 356 | 0.5 | Round |
| 19 | HX-F250400 | 250 | 400 | 0.3 | Round |
| 20 | HX-F250450 | 250 | 450 | 0.3 | Round |
| 21 | HX-F250500 | 250 | 500 | 0.3 | Round |
| 22 | HX-F250510 | 250 | 510 | 0.5 | Round |
| 23 | HX-F250600 | 250 | 600 | 0.5 | Round |
| 24 | HX-F250680 | 250 | 680 | 0.5 | Round |
| 25 | HX-F250900 | 250 | 900 | 0.3 | Round |
| 26 | HX-F2501000 | 250 | 1000 | 0.3 | Round |
| 27 | HX-F2502000 | 250 | 2000 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F300120 | 300 | 120 | 0.3 | Round |
| 2 | HX-F300200 | 300 | 200 | 0.5 | Round |
| 3 | HX-F300210 | 300 | 210 | 0.5 | Round |
| 4 | HX-F300220 | 300 | 220 | 0.5 | Round |
| 5 | HX-F300260 | 300 | 260 | 0.3 | Round |
| 6 | HX-F300290 | 300 | 290 | 0.5 | Round |
| 7 | HX-F300326 | 300 | 326 | 0.3 | Round |
| 8 | HX-F300356 | 300 | 356 | 0.5 | Round |
| 9 | HX-F300400 | 300 | 400 | 0.3 | Round |
| 10 | HX-F300510 | 300 | 510 | 0.5 | Round |
| 11 | HX-F300600 | 300 | 600 | 0.3 | Round |
| 12 | HX-F300680 | 300 | 680 | 0.5 | Round |
| 13 | HX-F300900 | 300 | 900 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F350220 | 350 | 220 | 0.3 | Round |
| 2 | HX-F350240 | 350 | 240 | 0.3 | Round |
| 3 | HX-F350300 | 350 | 300 | 0.3 | Round |
| 4 | HX-F350450 | 350 | 450 | 0.3 | Round |
| 5 | HX-F350700 | 350 | 700 | 0.5 | Round |
| 6 | HX-F350900 | 350 | 900 | 0.3 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F400220 | 400 | 220 | 0.5 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F500300 | 500 | 300 | 0.5 | Round |
| 2 | HX-F500540 | 500 | 540 | 0.5 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F600300 | 600 | 300 | 0.5 | Round |
| 2 | HX-F600700 | 600 | 700 | 0.5 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F900700 | 900 | 700 | 0.5 | Round |
| 2 | HX-F900890 | 900 | 890 | 0.5 | Round |
| No. | Model | Diameter (mm) | Focal length (mm) | Groove Pitch (mm) | Shape |
| 1 | HX-F11001000 | 1100 | 1000 | 0.5 | Round |
| 2 | HX-F11001300 | 1100 | 1300 | 0.5 | Round |

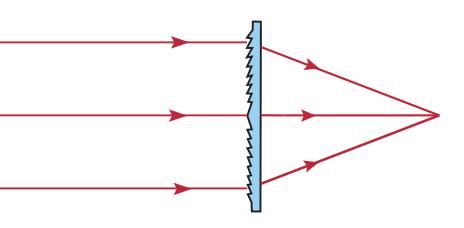

MANUFACTURING FRESNEL LENSES: The first Fresnel lenses were made by tediously grinding and polishing glass by hand. Eventually, molten glass was poured into molds, but it was only with the development of optical-quality plastics and injection-molding technology in the 20th-century that the use of Fresnel lenses in many industrial and commercial applications became practical. Fresnel lenses can be manufactured from a variety of substrates. They are manufactured from acrylic to polycarbonate to vinyl, depending on the desired wavelength of operation. Acrylic is the most common substrate due to its high transmittance in the visible and ultraviolet (UV) regions, but polycarbonate is the substrate of choice in harsh environments due to its resistance to impact and high temperature. APPLICATION EXAMPLES: While French physicist Augustin-Jean Fresnel (1788 - 1827) was not the first to conceptualize a Fresnel lens, he was able to popularize it by integrating it into lighthouses. Since then, Fresnel lenses have been utilized in a variety of applications, from light collimation and light collection to magnification. Light Collimation: A Fresnel lens can easily collimate a point source by placing it one focal length away from the source. In a finite-conjugate system, the grooved side of the Fresnel lens should face the longer conjugate because this produces the best performance.
Light Collection: One of the most common applications for a Fresnel lens is the collection of solar light, which is considered very nearly parallel (an infinite-conjugate system). Using a Fresnel lens for light collection is ideal for concentrating light onto a photovoltaic cell or to heat a surface. For example, a Fresnel lens can be used for popular home maintenance such as heating a home or pool! In these cases, the overall surface area of the lens determines the amount of collected light.
Magnification : Another common application for a Fresnel lens is magnification. It can be used as a magnifier or projection lens; however, due to the high level of distortion, this is not recommended. Also, the image quality does not compare to that of a higher-precision system given the amount of distortion. While commonly found in solar applications, Fresnel lenses are ideal for any application requiring inexpensive, thin, lightweight positive lens elements. Fresnel lenses are not new technology, but their pervasiveness has increased with improvements in manufacturing techniques and materials. Fresnel lenses are truly unique optical lenses which make them a great tool for a range of interesting and fun optical designs.
