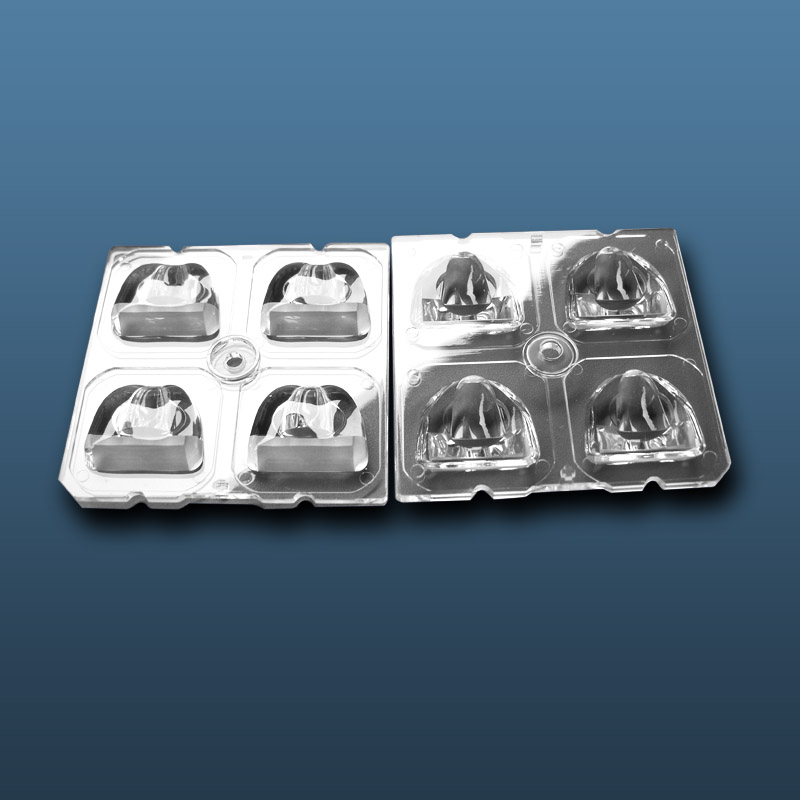

HX-ALD50 Series (50x50mm 2X2) is HONGXUAN's most comprehensive product family with a wide variety of different beams suitable for both outdoor and indoor lighting. Being especially designed for street lighting they provide highly efficient and uniform lighting. Designed for LEDs of latest generation, from 100 lm/W to 300lm/W; The optics, made of PMMA, PC and Silicone, UV protected, never come in contact with the LED or the PCB; Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors; Available with PCB for testing;
1. HX-ALD50 Series optical systems are ready-to-use optical panels are ideal for street and wide area LED lighting projects.

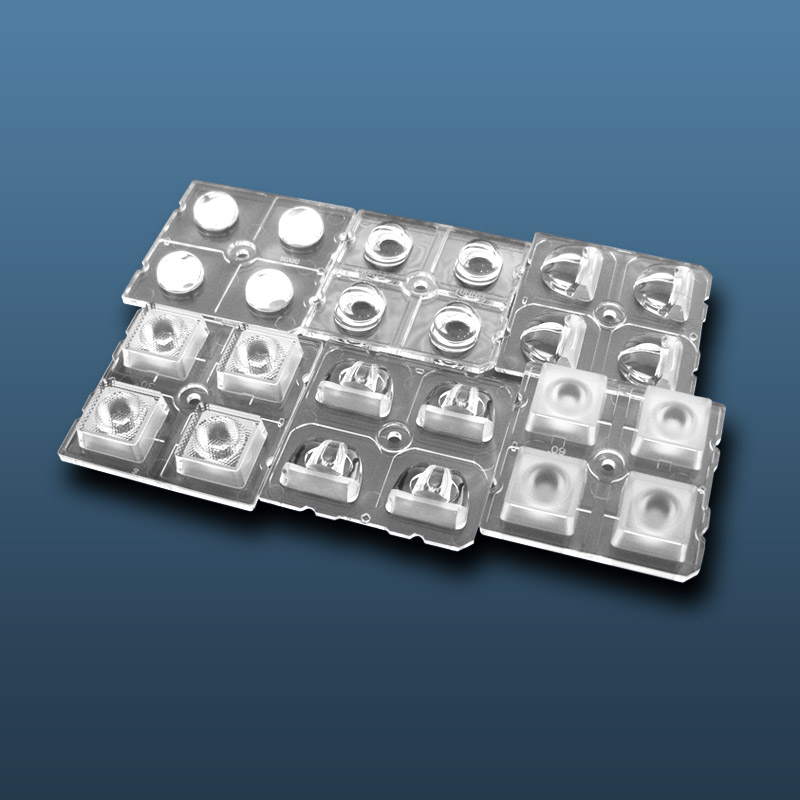

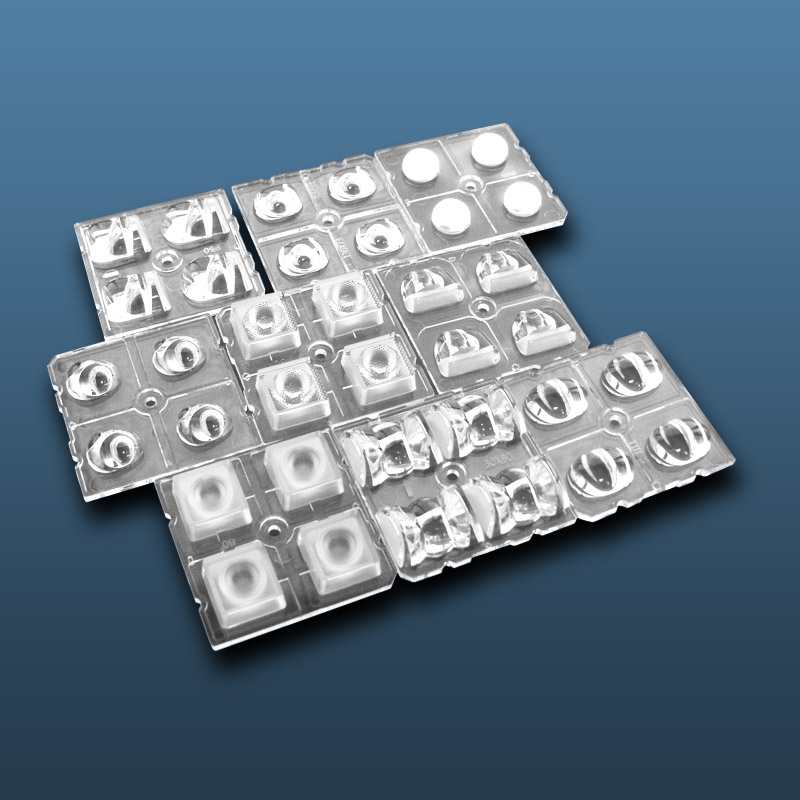

2. HX-ALD50 Series is first and unique system using fifteen different core optics with different geometries in the same system and makes virtually possible to customize any application.
3. HX-ALD50 Series 50 x 50mm 2X2 arrays led lens for 3030,3535,5050,7070 size LED packages,for street lighting,flood lights,tunnel lights,stadium lights,parking lot lighting.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E,XHP35;
CREE XML,MHB;
OSRAM SSL80,SSL150,Square,P8,S8;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535,5050;
LG 3535, Samsung 3535;
Nichia 119A;
3030,3535,5050,7070 ;

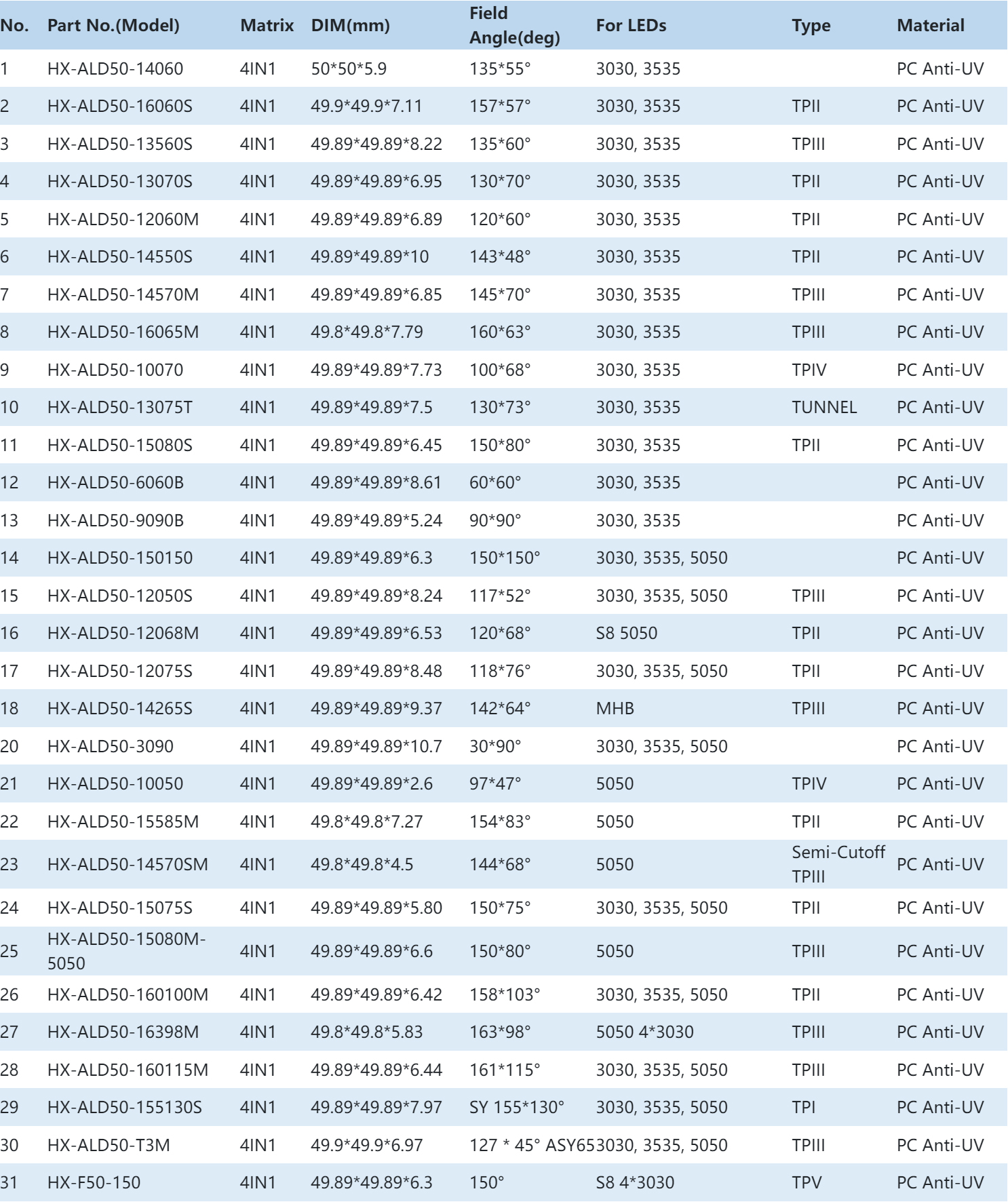

Product Selection Guide:
50 x 50 mm 2X2 arrays led lens for 3030,3535 5050 size LED packages,for street lighting,flood lights,tunnel lights,stadium lights,parking lot lighting.( HX-ALD50 Series ).HX-ALD50 Series (50x50mm 2X2) is HONGXUAN's most comprehensive product family with a wide variety of different beams suitable for both outdoor and indoor lighting. Being especially designed for street lighting they provide highly efficient and uniform lighting. Designed for LEDs of latest generation, from 100 lm/W to 300lm/W; The optics, made of PMMA, PC and Silicone, UV protected, never come in contact with the LED or the PCB; Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors; Available with PCB for testing;
The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.
The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
