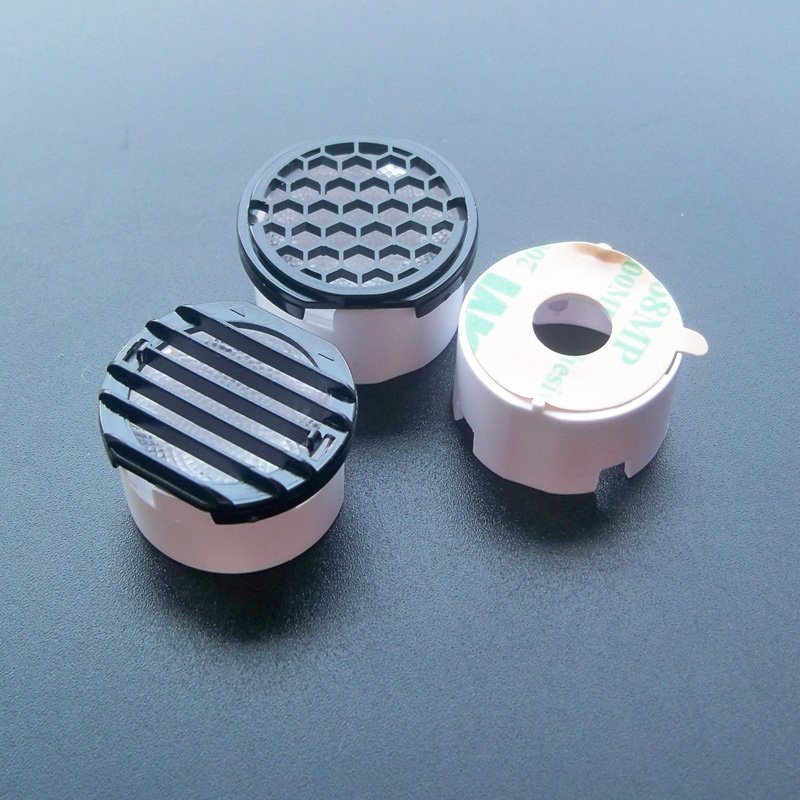

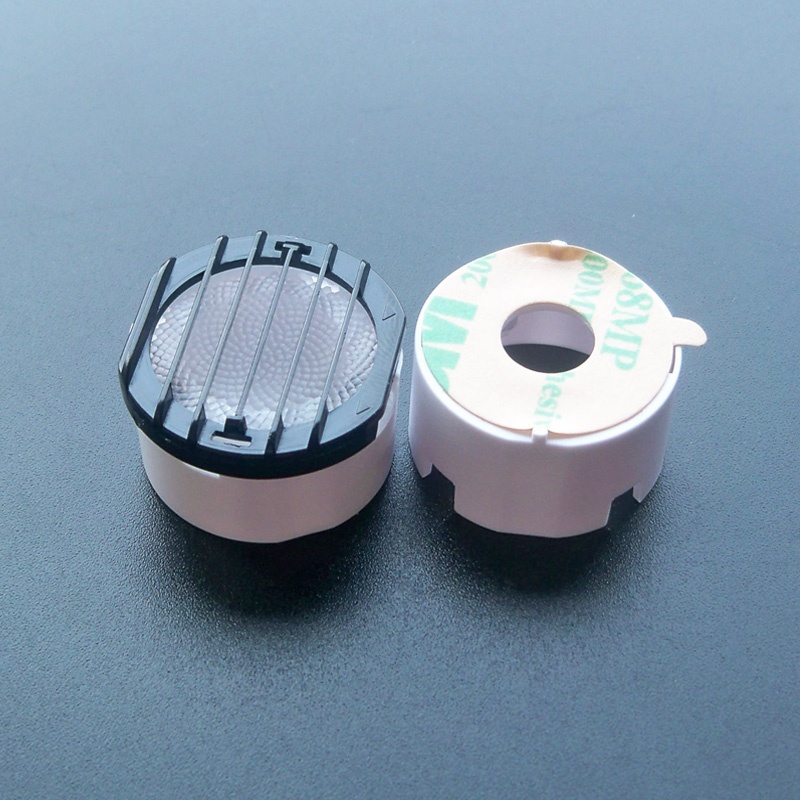

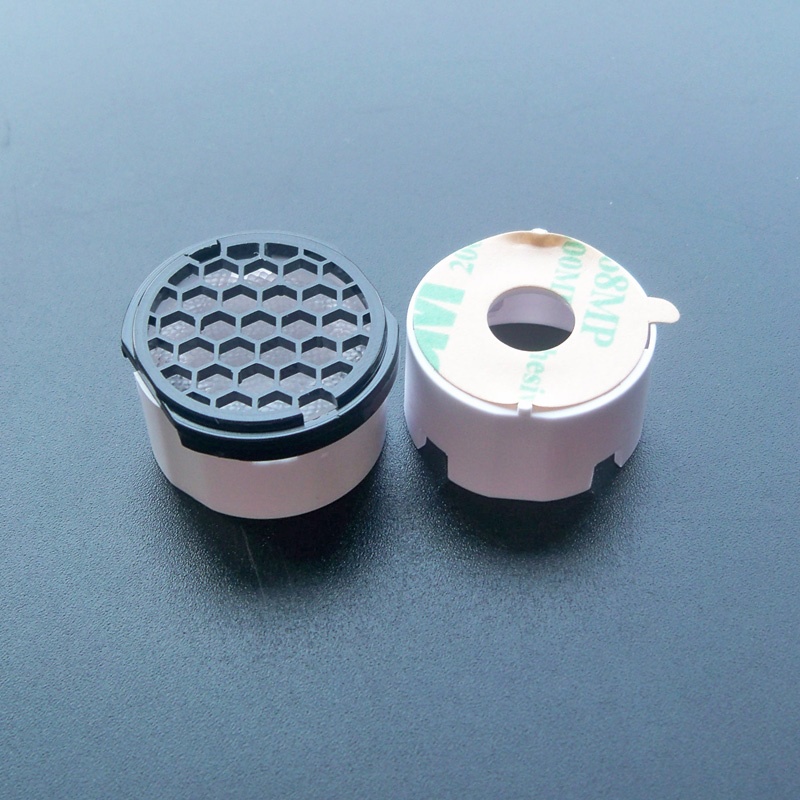

HX-CHK-xx-A/ B Series has a hybrid design of Linear cover or honeycomb cover and lenses built for high visual comfort applications. Being built around HONGXUAN'S previously released optical designs it has many different beam angles. Similarly to other HONGXUAN Dark Light products, it reduces unwanted glare efficiently, while maintaining the optical performance required by the application. Complementing the package with HX-CHK-xx-A/ B, a stripped-down version of the original, to give you the full freedom for creating personalized luminaire solutions. Available with black and white shades.
Diameter 21.7mm easily sealable antiglare TIR-lenses for up to 3535 ,3030,2525 RGB size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square，OSRAM P7;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
Ø21.7mm Linear cover or honeycomb cover antiglare LED lens UGR<16 for CREE XPL XPE XHP35 Luxeon T SeoulZ5P LEDs(HX-CHK-xx-A/B Series). HX-CHK-xx-A/ B Series has a hybrid design of Linear cover or honeycomb cover and lenses built for high visual comfort applications. Being built around HONGXUAN'S previously released optical designs it has many different beam angles. Similarly to other HONGXUAN Dark Light products, it reduces unwanted glare efficiently, while maintaining the optical performance required by the application. Complementing the package with HX-CHK-xx-A/ B, a stripped-down version of the original, to give you the full freedom for creating personalized luminaire solutions. Available with black and white shades.
The Hongxuan(Shenzhen Hongxuan Optoelectronic Technology Co.,Ltd) lens offers low-profile lenses specifically designed for the Luxeon LEDs, OSRAM LEDs ,Bridgelux LEDs or Seoul LEDs,Cree LEDs. A software-optimized aspheric profile enables the generation of several different beam output patterns:narrow,medium,elliptical and wides beams. The high collection efficiency reaches 85% of the total flux emitted by the LEDs. Lens holders are available in white or black,and provide the proper alignment the between the LEDs and the lenses,set correct distance between the lens and LED. The lens holder can be glued to the PCB to provide a secure assembly.
The LED lenses are for CREE,Lumileds,Osram,Seoul,Nichia,Bridgelux,Citizen,Prolight LEDs.and can provide street light lens,flood light lens,lighting lens,MR16 lens,Par22 lens,Par30 lens,Par38 lens,stage lighting lens,flashlight lens,hybrid light lens. These TIR optics are used to get narrow beams with smaller LED's or allow you to use the larger source LED’s and even multi chip LED's. As with the other TIR ranges, we have a number of beams to allow you to use the same size optics for a number of beam angles.
